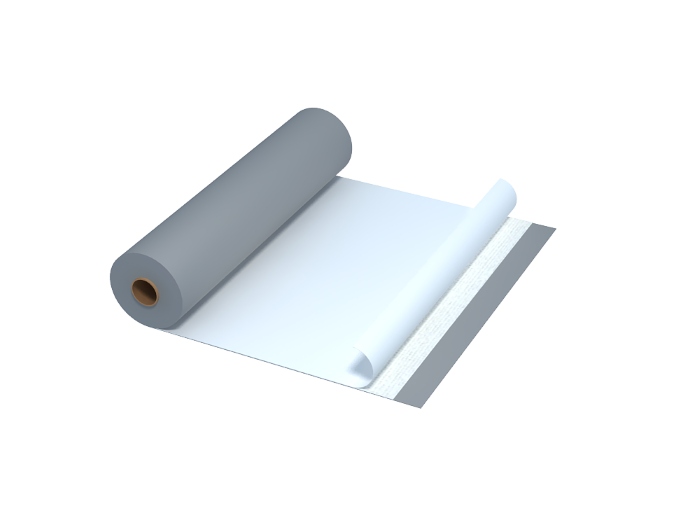

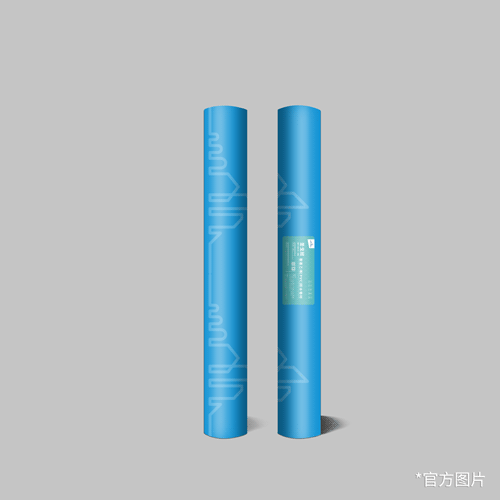

Polyeco™ GR thermoplastic polyolefin (TPO) waterproofing membrane

Scope of application

It is suitable for planting waterproof projects such as roof garden, planting roof, planting roof, municipal greening and so on.

Product specifications

Model	Thickness（mm）	Wide（m）	Length（m）	Lap edges	Execution standards
H-type (average material)	1.2、1.5	2.0	20	Weld	GB27789-2011
Type P (fabric reinforced)	1.2、1.5	2.0	20	Weld	GB/T35468-2017

Product features

1. It has excellent root puncture resistance, can avoid plant roots penetrating the waterproof layer, and can be used in complex underground environments;

2. It has excellent welding performance, which can greatly improve the root resistance, waterproofing and sealing stability of the lap joint;

3. No heavy metals or other harmful components to plant roots, recyclable, good environmental performance;

4. Resistant to mold and algae and other microorganisms;

5. Resistant to acid, alkali, salt and lubricating oil corrosion;

6. Reduce the urban heat island effect, increase comfort space, and improve rainwater management.

Technical indicators

Executive standard: GB27789-2011 "Thermoplastic polyolefin (TPO) waterproofing membrane"

project		index
project		H	L	P
The thickness of the resin layer on the intermediate tire base/mm ≥		-	-	0.4
Tensile properties	Maximum tensile force/ （N/cm） ≥	-	200	250
	Tensile strength/MPa ≥	12.0	-	-
	Elongation at maximum tensile force/% ≥	-	-	15
	Elongation at break/% ≥	500	250	-
Low temperature bending		-40°C without cracks
Seam peel strength/ （N/mm） ≥		4.0 or coil destruction		3.0
Right angle tear strength/ （N/mm） ≥		60	-	-

Executive standard: GB/T35468-2017 "Root-piercing waterproofing membrane for planting roofing"

project				index
Resistant to mold and corrosion	Anti-mildew grade			Level 0 or 1
Seam peel strength	No processing（/ N/mm）	Plastic waterproofing membrane	weld	≥ 3.0 or coil damage
			Bond	≥1.5
	Retention rate after heat aging treatment/%			≥80 or coil destruction

Construction steps

Full adhesion method: base layer cleaning → pre-laid coil → large surface gluing → laying coil → lap treatment → node strengthening → closing treatment → self-inspection and receipt

Empty paving method: base layer cleaning → pre-laid coil → lap treatment → node reinforcement → self-inspection and acceptance

Case show

Xinxiang City Activity Staff Center
